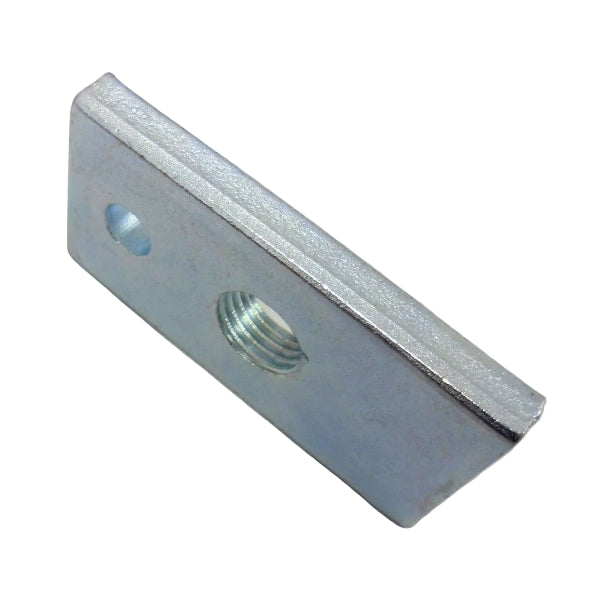

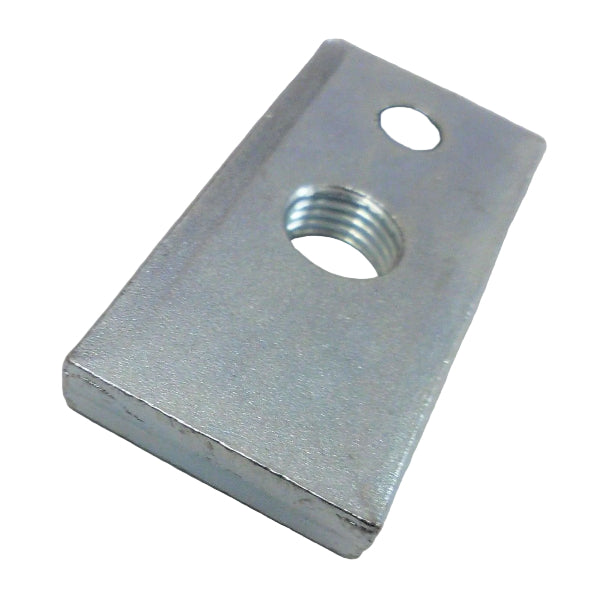

Grayston Harness Eye Bolt Reinforcement Back Plate

This Grayston harness mounting plate is manufactured to FIA standards.

It uses a 50 mm x 25 mm x 6 mm backing plate with a welded 7/16" UNF threaded nut and is suitable for all FIA-homologated harnesses using eye bolt attachments.

• Thread: 7/16" UNF
• Dimensions: 50 mm x 25 mm x 6 mm
• FIA homologated

Price per plate.

Eye bolts also available, see part number PAFGE50A for short version and PAFGE50AL50 for long version.

When mounting a harness eye bolt through sheet metal, a reinforcement plate must be added to the underside. This helps spread the load and reduces the risk of the fixing pulling out of the floorpan or body panel.
